उत्पाद विवरण:
|
| DIMENSIONS: | जनरेटर के उपयोग के लिए 500KW प्रतिरोधक लोड बैंक | नामित अस्थिरता: | 380V, 400V, 415V, आदि |
|---|---|---|---|
| लोड चरण: | 1, 2, 2, 5, 10, 20, 20, 50, 100,200, 200 किलोवाट | प्रदर्शन सटीकता: | 0.5 वर्ग |
| संरक्षण ग्रेड: | IP23 | कूलिंग मोड: | जबरदस्ती एयर-कूल्ड |
| उद्देश्य: | जेनरेटर परीक्षण | प्रकार: | विद्युत परीक्षण उपकरण |

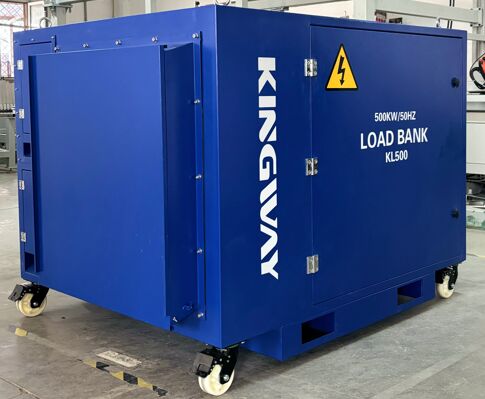

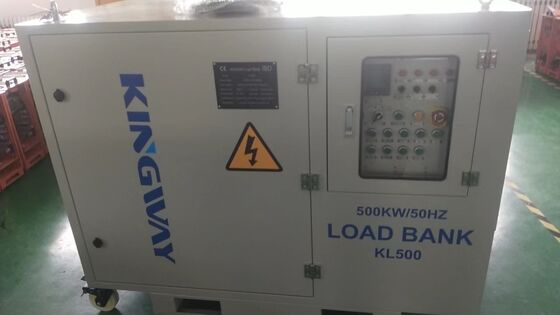

Kingway Load Bank product is an well developed electric power load testing and adaptive load-following testing equipment. It seamlessly integrates dry-type load modules with automated measurement and control modules, enabling comprehensive testing of generator sets and evaluation of their power output capacity while monitoring electrical parameters.
The equipment can be used in conjunction with a computer to perform generator set testing and adaptive load-following. During testing, it can generate data tables and curves, and supports printing functions, making the load distribution testing more versatile, intelligent, and scientific. It provides a complete solution for generator set testing and adaptive load-following testing.
| Rating voltage/frequency | 400VAC power 500KW; 3 phase 4 wire, 50Hz/60Hz |
| Max Load Power | 510kW |
| Load Resolution | Resistive Load: 11 steps, 1, 2, 2, 5, 10, 20, 20, 50,100, 100, 200KW |
| Power Factor | 1 |
| Load Tolerance (overall) | ±3% |
| Load Tolerance (three phase) | ≤3% |
| Display Accuracy | 0.5 class |
| Communication Interface | RS232/RS485 |
| Insulation | F |
| Ambient Temperature | -20°C～+50°C |
| Way of Working | Continuous Working |
| Warranty | 12 months |
